LogSens
Product Status:
active
LogSens is an industrial IOT board which offers Wifi/Bluetooth(BR/EDR/LE) and RS485(or CAN) bus for connectivity; ideal for Data-logging, Remote Control and Monitoring applications.
- Wifi/Bluetooth with CAN/RS485 Bus
- Economical
- Wide Input Voltage Range
- Industrial Grade
Features
LogSens offers following features:
- 1x Wifi (802.11 b/g/n) / Bluetooth v4.2 BR/EDR and BLE *
- 1x Isolated CAN / RS485 (Half Duplex) Bus *
- 1x MicroSD Card
- 1x Expansion Header
- 1x Sensor Header compatible with Seeed Grove Sensor boards
- 1x Micro USB Connector (Programming/Debug Port: UART to USB)
- 1x Debug Header
- Real-Time Clock (RTC) with backup battery
- Wide Input Voltage Range (+7 to +45 VDC)
- Industrial Temperature Range (-40°C to +85°C)
* Product variant
Technical Document
Datasheet
Technical Documents
- LogSens V1.1 Schematics: Contact us!!
- LogSens PCB Assembly Drawing: Coming soon!!
Software
Software/Firmware Repositiory
Application
- Industrial Control and Automation
- Internet of Things (IoT) Sensor Hub / Gateway
- Remote Monitoring and Control Applications
- Data Acquisition Systems
- Warehouse and Cold Storage – Monitoring and Control
- Home Automation
- Smart Agriculture: Gateway, Data-logger, Control Systems
- Warehouse & Cold-storage Monitoring and Control Systems
References
Wireless MCU Module
List of compatible enclosures (IP65/IP67, 120mm(L) x 85mm(W))
Related Products

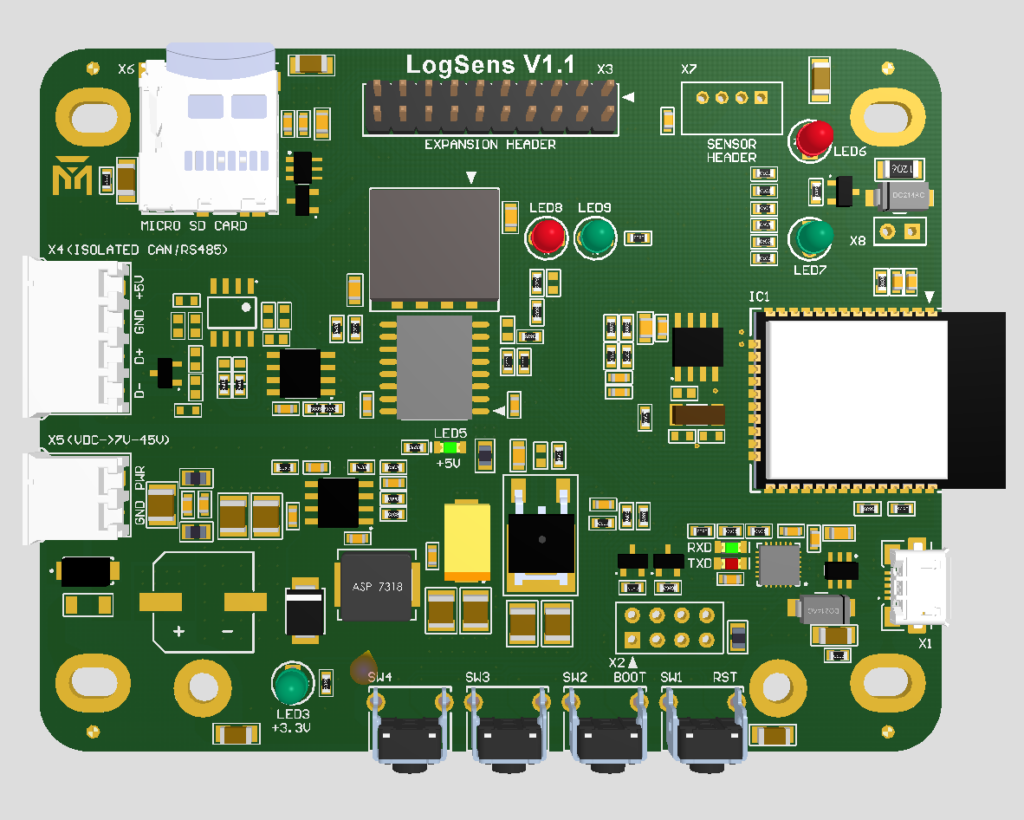

Product Images
