Versatile Single Board Computer For Toradex Colibri Computer on module / System on Module
LogMax
Product Status:
active
LogMax is a versatile single board computing solution. It offers a large number of connectivity, communication and multimedia interface in a compact form-factor.
- Compatible with Toradex Colibri product family
- Compact form factor: 115mm x 95mm
- Ideal for development and mass-production
- Industrial Grade
Features
- 1x Ethernet 10/100 Mbit/s
- 2x USB 2.0 Host
- 1x USB 2.0 Host/Client
- 1x Micro USB Connector (Debug Port: UART to USB)
- 1x Micro SD Card Holder
- 1x Display Connector with 4-wire Resistive Touch
- 1x Capacitive Touch Screen Connector (FFC)
- 1x 3.5mm Audio Jack (TRRS, Standard: CTIA (AHJ))
- 1x Analog Audio Line-In Header
- 1x 8-bit Parallel Camera Connector (FFC)
- Real-Time Clock (RTC) with backup battery
- 1x Mini PCIe Connector with SIM Card Holder
- 1x Expansion Header (GPIO, SPI, I2C, PWM, UART, Analog-In)
- 1x Expansion Shield Header
- 2x RS232 Serial Interface
- 2x Isolated CAN Interface
- 2x Isolated RS485 Interface
- Wide Input Voltage Range (7 to 28 VDC)
- Industrial Temperature Range
* Product variant
Technical Document
Datasheet
Technical Documents
Software
Software/Firmware Repositiory
Application
- Industrial Control and Automation
- Internet of Things (IoT) Gateway
- Edge Computing Systems
- Human Machine Interfaces (HMI)
- Smart Appliances
- Access Control Panels
- Security and Alarm Systems
- Automotive
- Data Acquisition Systems
Design Data

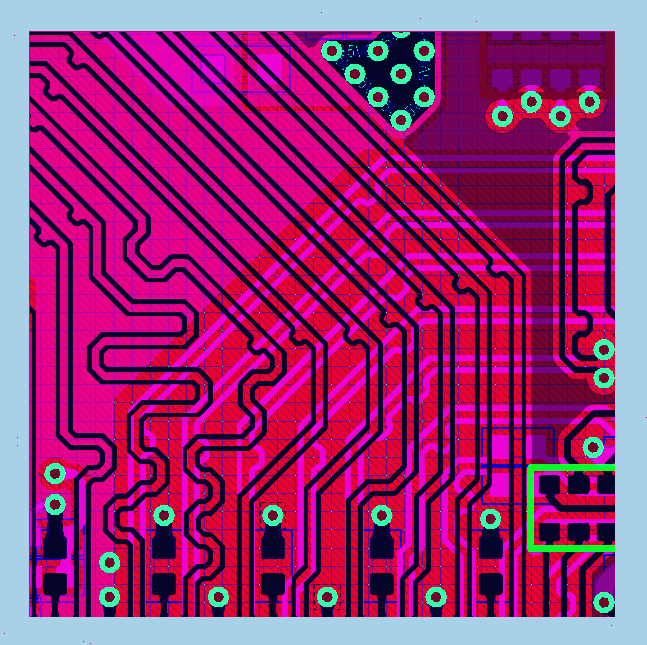

Electronics CAD Data
Design files for LogMax Board V1.0
- Click here to download the Schematics PDF.
- Click here to download the Bill of Materials (BOM).
- Click here to download the E-CAD design files.
Mechanical Models
The CAD model of the LogMax Board and Demo Enclosure can be downloaded here

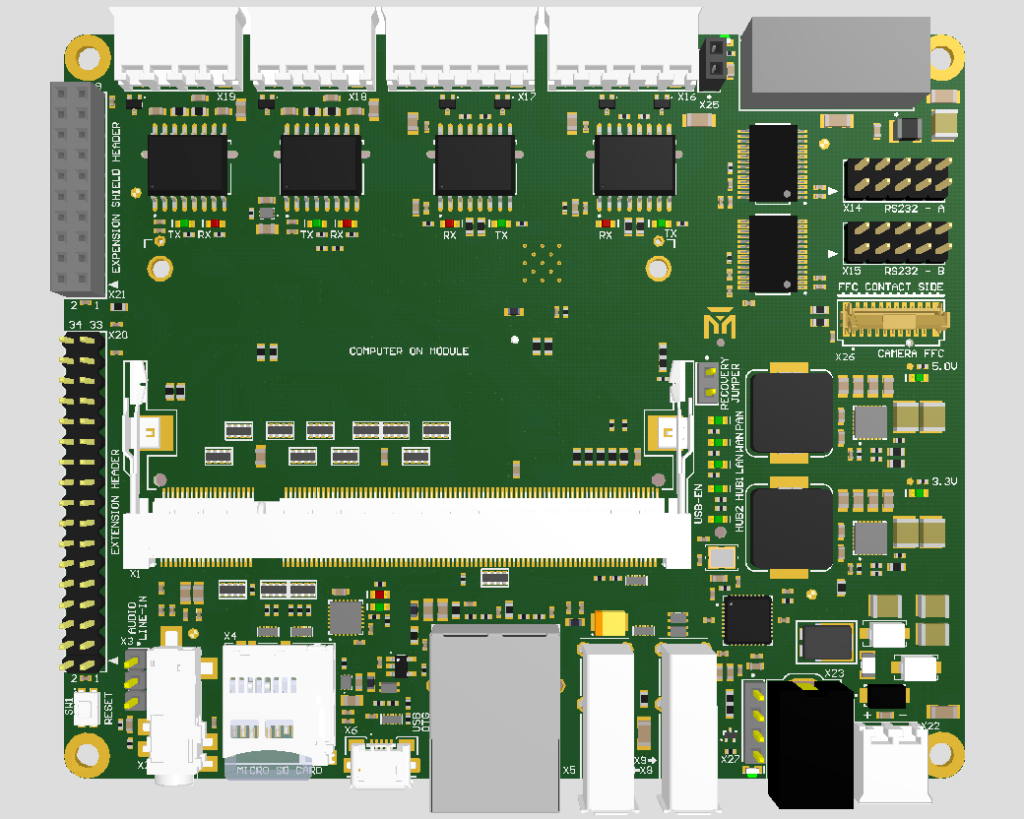

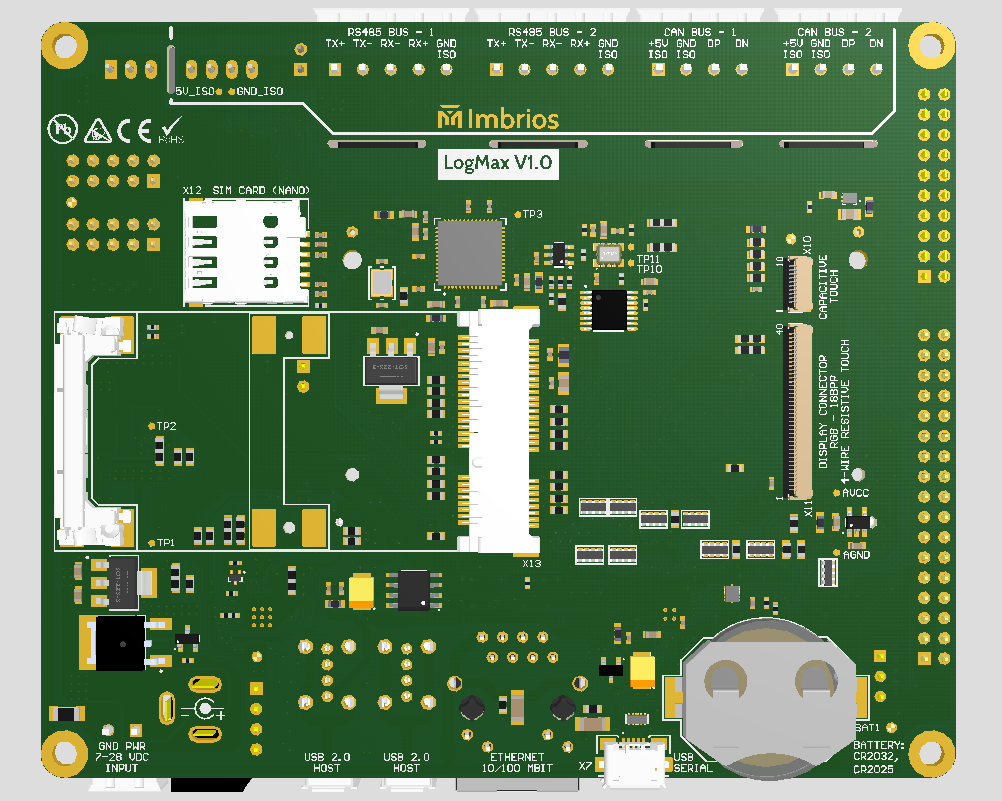

LogMax Board V1.0 mechanical CAD models
- Click here to download the 3D Step model.
LogMax enclosure mechanical CAD models
We have created an enclosure for the LogMax Board as a reference design. It is a simple sheet metal design intended to be fabricated/manufactured using 2mm thick aluminum sheet. The design data of the enclosure is available free of cost.
- CAD model in various format can be downloaded from 3DContentCentral website. Click here to download.
- Click here to download the PDF drawings.
- Click here to download the DXF drawings.
